Contour Pipe Marker Standard #1 Jackson Curv-O-Mark

SKU I-150055
MFR KC-J1874

Create an account today to get access to pricing and availability.

Availability:
Out of stock

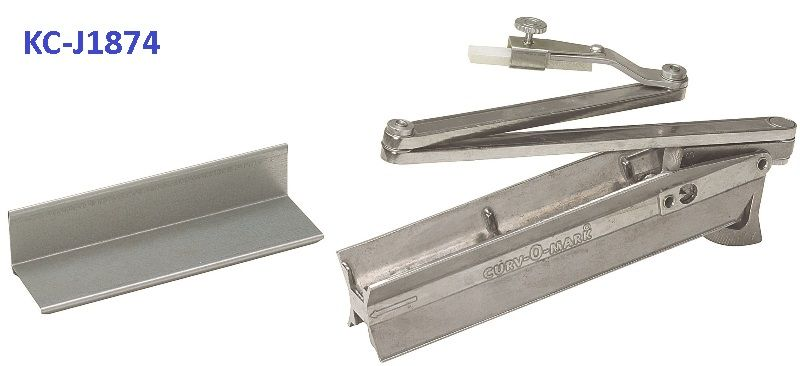

  • Counter Marker Standard No.1 (ref. 0721-0000) KC-J1874

WHY CHOOSE JACKSON CONTOUR MARKERS ?

  • Compact, time-saving tool used for lay out marking of pipe and structural steel joints
  • Laterals at any angle, tees, wyes, crosses, elbows - any type or size of joint can be quickly and precisely laid out
  • No more complicated formulas, trial and error, or wasted materials

APPLICATION INFO:

  • Standard marker: Use for 40mm (1-1/2 in) to 450mm (18 in) diameter pipe, or structural steel members up to 450mm (18 in) wide
  • Jumbo marker: Use for 200mm (8 in) to 1200mm (48 in) diameter pipe, or structural steel members up to 1200mm (48 in) wide
  • Can be used right side up or upside down, depending on the direction of the line to be marked

WHAT ELSE ?

  • Contour Marker consists of: X-shaped frame, calibrated protractor, triple jointed marking arm and holder

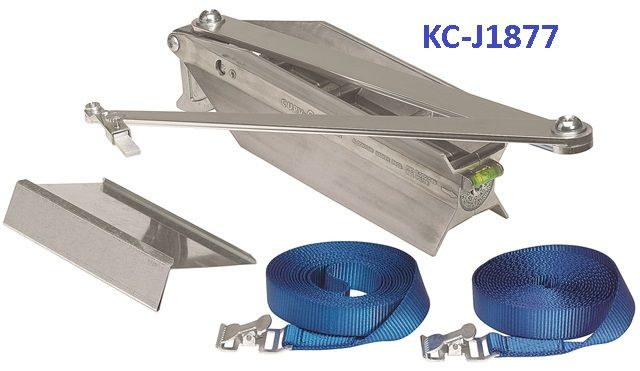

  • Jumbo model comes with web strap to hold the unit in place during layout and built-in adjustable dial bubble protractor level for accurate center line location
  • Comes with a Structural Adaptor designed to simplify the layout of structural joints, including l-beams, angles, channels, square tube and similar shapes
  • Holder accepts a soapstone crayon (included), felt pen or pencil
  • Frame easily folds into a compact toolkit
  • Protractor is calibrated on both sides-one in degrees, the other in rise inches-per-foot-to service any type of measurement need
  • Made from durable, lightweight aluminium
  • Requires minimal maintenance, only occasional oiling of joints, to provide long service life

RELATED ACCESSORIES:

  • Optional Combination Adaptor KC-J1875 standard No.2 / KC-J1878 Jumbo No.5 allows lay out joints on larger size pipe, as well as marking compound angles with just one setting
  • Replacement dial & level for No. 4 Jumbo Marker: KC-J1905

WELDCLASS is the official Australian distributor for Jackson Contour Curv-O-Mark products.
