ESAB Cutmaster 120 (40mm) w 6.1m SL100 Torch, 20-120A@40%, 415V/32A

by Cigweld
SKU I-064359
MFR 0559119304

Create an account today to get access to pricing and availability.

Availability:
Out of stock
Dimensions385H x 315W x 615L mm
Duty Cycle40% @ 120A, 400V 3 ph
Maximum Output Range120amps
ProcessesPlasma Cutting
Supply Voltage415V, 3 phase, 50/60Hz
Weight28.1kg

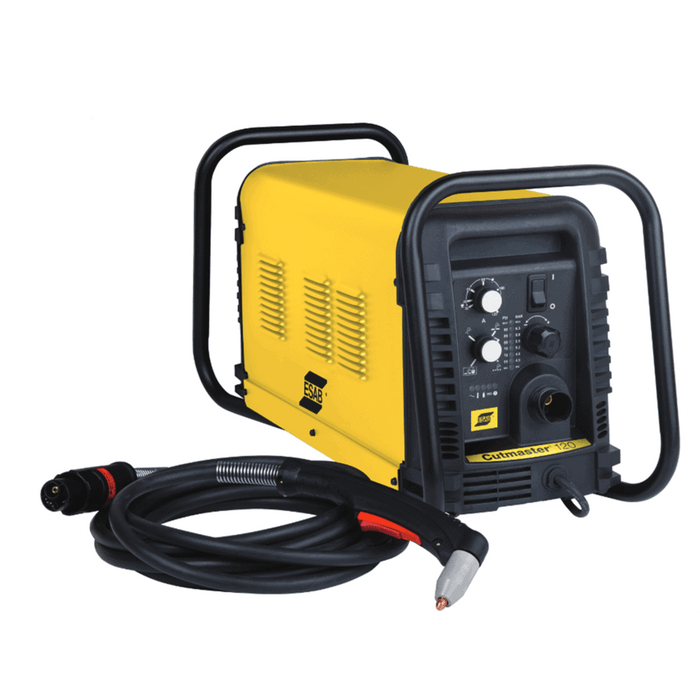

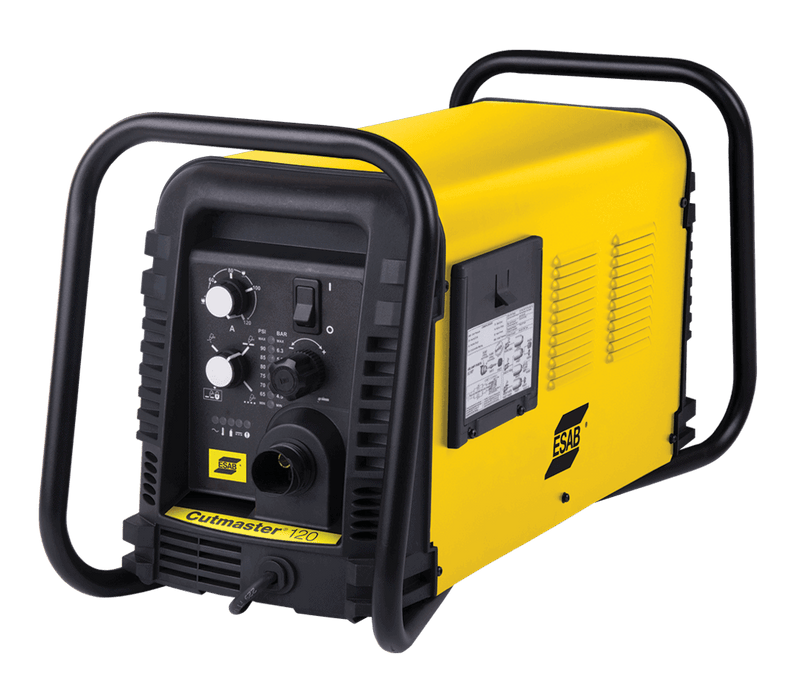

The big brother of the ESAB Cutmaster Range The ESAB Cutmaster 120, weighing only 28kg and provides 120 amps of cutting power for a 40mm (1-1/2”) recommended cut and 55mm (2-1/8”) maximum cut. This compact unit, like all other Cutmasters, comes standard with the 1Torch® providing you with the well known comfort and reliability famous throughout the industry. Packages include power source, SL100 1Torch, spare parts kit, air filter/regulator, work cable and clamp and power cable.
  • Features
    • True Cut - 40mm 1-1/2”)
    • Quick Disconnect Torch for easy maintenance or machine torch conversion
    • Auto-Restrike on mesh or expanded metal for maximum productivity
    • True-Guard roll bar for ultimate protection
    • TD Surelok® technology for better quality cuts and parts life
  • Quick Specs
    • 415 Volt, 3 phase, 50/60 Hz
    • Auto pilot restart
    • True Guard roll bar
    • SL100 6.1m hand cutting torch
    • 120 amp output
    • 3 year limited warranty
  • 1TORCH® FEATURES.

    Ergonomic Torch Handle

    Easy-to-use trigger release that provides comfort during prolonged use with 75° and 90° heads.

    Extended or Protected Consumable Parts

    By simply changing the shield cup, you can either have:

    • An extended tip for greater visibility and control and precision drag cutting at low power.
    • A protected tip for on the plate drag cutting at high power up to 120 Amps.

    ATC® (Advanced Torch Connector) Quick Disconnect Option

    Switching to a machine torch, swapping out a damaged unit, or simply changing lead lengths is done quickly and requires no tools.
