ESAB Cutmaster 100 (35mm) w 6.1m SL100 Torch, 20-100A@80%, 415V/27A

by Cigweld
SKU I-064358
MFR 0559117304

Create an account today to get access to pricing and availability.

Availability:
Out of stock
Duty Cycle60% @ 100amps
Maximum Output Range100amps
ProcessesPlasma Cutting
Supply Voltage415V, 3 phase, 50/60Hz
Weight28.1kg

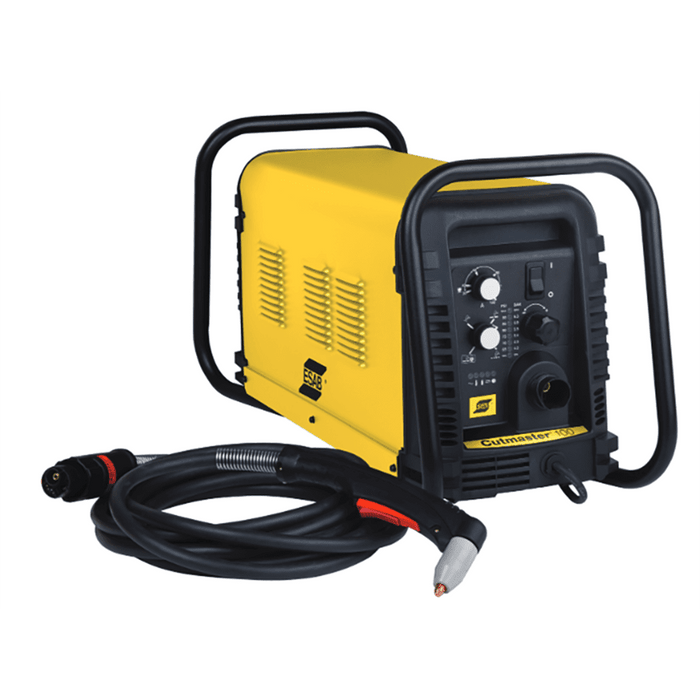

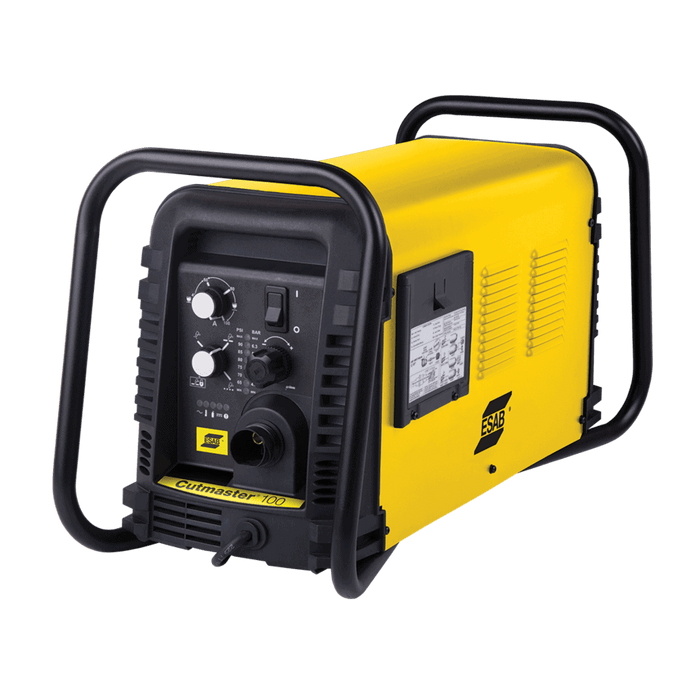

Packing huge amounts of power while remaining portable The ESAB Cutmaster 100 weighs in at 28 kg and provides 100 amps of cutting power. This unit’s light weight compact design makes it the most portable and powerful cutting machine available. This unit combined with the 1Torch® has a maximum cut capacity of 45 mm (1 3/4″). More cut capacity than any other system in its class! Packages include power source, SL100 1Torch, spare parts kit, air filter/regulator, work cable and clamp and power cable.

The unit is specially designed to serve the 35mm market with a high duty cycle of 60% in a 40°C ambient environment.

  • Features
    • True Cut- 35mm (1-3/8”)
    • Quick Disconnect Torch for easy maintenance or machine torch conversion
    • Auto-Restrike on mesh or expanded metal for maximum productivity
    • True-Guard roll bar for ultimate protection
    • TD Surelok® technology for better quality cuts and longer parts life
  • Quick Specs
    • 415 Volt, 3 phase, 50/60 Hz
    • Autopilot restart
    • True Guard roll bar
    • SL100 6.1m hand cutting torch
    • 100 amp output
    • 3 year limited warranty
  • 1TORCH® FEATURES.

    Ergonomic Torch Handle

    Easy-to-use trigger release that provides comfort during prolonged use with 75° and 90° heads.

    Extended or Protected Consumable Parts

    By simply changing the shield cup, you can either have:

    • An extended tip for greater visibility and control and precision drag cutting at low power.
    • A protected tip for on the plate drag cutting at high power up to 120 Amps.

    ATC® (Advanced Torch Connector) Quick Disconnect Option

    Switching to a machine torch, swapping out a damaged unit, or simply changing lead lengths is done quickly and requires no tools.
