TAP T217 M 5 x 0.8 6HX SPIRAL R10 Ni DIN371 C PM-Co TiCN

TAP T217 M 5 x 0.8 6HX SPIRAL R10 Ni DIN371 C PM-Co TiCN

by SUTTON
SKU I-032691
MFR T2170500

Create an account today to get access to pricing and availability.

Availability:
Out of stock
Item #T2170500

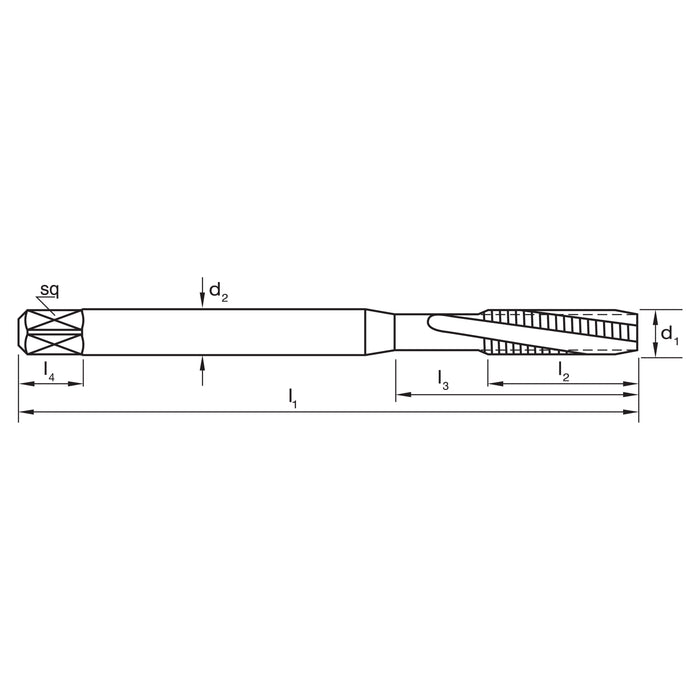

Length l1 (mm)70
Length l2 (mm)16
Length l3 (mm)25
Diameter d2 (mm)6
sq4.9
Length l4 (mm)8
z3
Pitch0.80
Drill Ø4.2
d1M5
FinishTiCN
DesignationNi
MaterialPM-HSS Co
Max Cut Depth1.5xD
Helix AngleR10
StandardDIN371
Shank FormA
TypeSpiral Flute
Thread FormM
Nut Tolerance6HX
CoolantExternal
LeadForm C / 3 x P
For Nickel alloys / age-hardened super alloys >1150N/mm2
Tight tolerances and optimised micro finish for optimal
process reliability and excellent thread quality
Blind or through holes
Depths up to approximately 1.5 x d1
  • -
