| Angle | 118 ° |
| Diameter | 11.91 mm |
| Flute length | 110 mm |
| Length, total | 146 mm |
| RPM from, grey cast iron, white cast iron | 270 RPM |
| RPM from, hard non-ferrous metals | 670 RPM |
| RPM from, soft non-ferrous metals | 810 RPM |
| RPM from, steels over 700 N/mm² | 540 RPM |
| RPM from, steels up to 700 N/mm² | 670 RPM |
| RPM from, thermoplastics, fibre-reinforced plastics (GRP/CRP) | 410 RPM |
| RPM to, grey cast iron, white cast iron | 670 RPM |
| RPM to, hard non-ferrous metals | 1340 RPM |
| RPM to, soft non-ferrous metals | 1610 RPM |
| RPM to, steels over 700 N/mm² | 670 RPM |
| RPM to, steels up to 700 N/mm² | 937 RPM |
| RPM to, thermoplastics, fibre-reinforced plastics (GRP/CRP) | 1080 RPM |
| Spiral angle, from | 25 ° |
| Spiral angle, to | 30 ° |
| Version | STEEL |
| Packaging unit | 5 pieces |
Drill Bit HSSG STEEL - 15/32"
Full ground drill bits with cross grinding

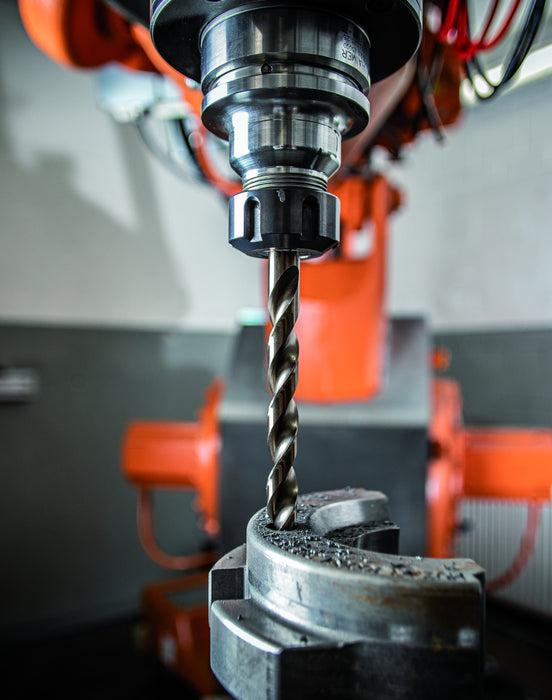

(the images above are for illustration purposes only)
DIN 338 HSSG N STEEL Drill Bits
• High speed steel twist drill bits
• Suitable for general use on steel, cast steel, grey cast iron, annealed cast iron, bronze, brass, aluminium
• Easy centring, long tool life & good chip removal
High-performance drilling tools in the STEEL in HSSG (M2) type for industrial uses.
Fully ground, right-hand turning version with cross grinding.
They are precision ground both in the chip flute and the guide chamfer as well as at the drill tip.
They also have cross grinding. These drills are suitable for highly precise positioning on work pieces and support centring during
drilling.
Recommendations for use:
• Observe the recommended rotational speed.
• When drilling metals, use a high-quality cutting oil or cooling lubricant, if possible. This facilitates smooth running and extends the drill tool life. Exception: when working on aluminium, use kerosene instead of cutting oil.
• In order to avoid corrosion, remove any particles which develop when working on stainless steel (INOX) from the work piece.
Clean the work piece chemically or mechanically (etching/polishing, etc.).
